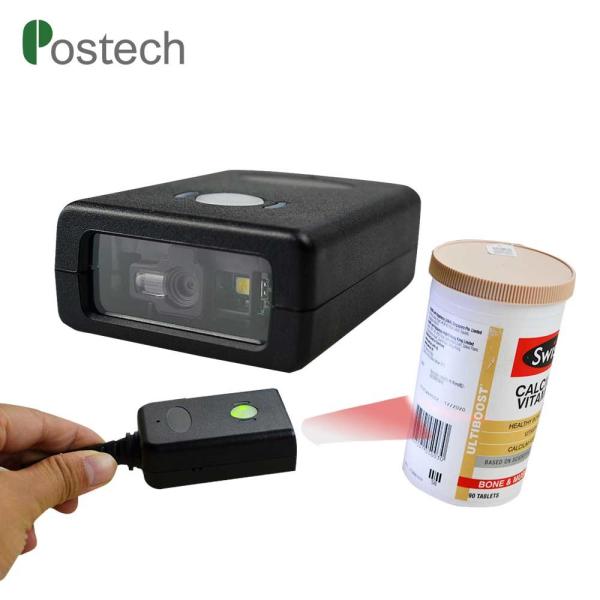

MS4100 Fixed Mount 2D Barcode Scanner
Designed for OEM applications, this high performance fixed mount
barcode scanner can easily be integrated into various solutions
such as kiosks, ticketing machines, (reverse) vending machines and
many more.
Type: Fixed Mount Scanner
Symbologies: 1D/2D
Reading Mode: CMOS
Interface: USB/RS232
Wireless: None
| Physical Characteristics |
| Dimensions: | 70mmX23mmX50mm(LxHxD) |
| Weight: | 150g |
| Voltage and Current: | 5 VDC +/-10% @ 400 mA |
| Performance Characteristics |
| Image (Pixels): | 640 pixels (H)x 480 pixels (V) |
| Light Source: | Aiming: 617 nm LED; illumination: 6500K LED |
| Field of View: | 40° (H) x 26° (V) |
| Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
| Print Contrast: | 25% minimum reflective difference |
| Symbology Decode Capability |
| 1-D: | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon
Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full
ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5,
Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5,
GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
| 2-D: | PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR
Code, MicroQR, Aztec |
| Motion Tolerances: | up to 25 in. (63.5 cm) per second |
| Interfaces Supported: | USB, RS232 |
| User Environment |
| Operating Temperature: | 32° to 122° F / 0° to 50° C |
| Storage Temperature: | -40° to 158° F / -40° to 70° C |
| Humidity: | 5% to 95%, non-condensing |
| Drop/Shock Specifications: | Withstands 10Gs 0.06" double amp |
| Ambient Light Immunity: | Immune to normal lighting up to 1600 Lux. Immune to sunlight up to
86,000 Lux. |
| Decode Ranges |
| Symbol & Density | Range |
| Code 39 (5 mil) | 50mm-120mm |
| 100%UPCA (13 mil) | 20mm-300mm |
| Code 39 (20 mil) | 25mm-340mm |
| PDF417 (6.8mil) | 30mm-120mm |
| DataMatrix (10mil) | 20mm-120mm |
| QR Code (20mil) | 15mm-240mm |
| Resolution 1D Code 39 | 4.8mil (0.122mm) |
| Resolution 2D Data Matrix | 6.6mil (0.168mm) |
| Performance may be impacted by bar code quality and environmental
conditions |
The MS4100 new generation fixed mount 2d barcode scaner, with fixed
mount and compact design,its suitable for all kinds of Kiosk, ATM,
ticket terminal, medical device , access control machine for
embedded use.
With infrared sensor, this barcode scaner can accurately detect and
read the barcode, and also save power at the same time, only when a
barcode appear, the illumination light will be on and the scanner
begins to work, this way the scanner can always keep cool, this
also makes the scanner more durable and reliable.
Features:
High Scanning Performance
Support scan almost all common 1d/2d barcodes, including screen
barcodes
Ease of integration
Compact and easy to integrate design. The small form factor enables
easy integration into various solutions.
Plug & Play
Plug and play, no driver required
Auto Scan function
It can scan by a manual trigger or automatically
FAQ:
Q1: Can I get some samples? Are they free?
A1: We support a 1pc sample order. Samples should be paid.
Q2: How can I buy it?
A2: You can place an order from our store: www.urscanner.com
directly. Or pls contact us first according to the contact info. We
will send you the proper link directly.
Q3: What is your payment method?
A3: We accept www.urscanner.com online orders, PayPal, T /T,
Western Union, and MoneyGram.
Q4: What's the lead time?
A4: For the sample, we have in stock, we can ship once we received
your payment. For bulk order, it depends on quantity and model you
order.
Q5: How long can I receive the goods
A5: We usually ship by Hongkong DHL, It will take around 3-7 days
Q6: How long is your warranty time?
A6: We officially promised warranty time is two years after
delivery.
