Temperature Measurement And Intelligent Human Thermal Camera Image
Facial Recognition

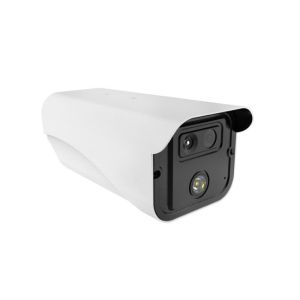

This Intelligent AI binocular thermal imaging system is composed of
AI binocular temperature detecting camera and AI thermal imaging
screening system. Integrated by thermal temperature detecting
sensor of high-accuracy, built-in intelligent face capture
algorithm, and ISP image processing technology etc, this device is
with face detection, temperature detection and face capture, etc
powerful features. With AI thermal imaging screening system, it can
accurately detecting the body temperature, capturing face pic and
records for those people appeared in front of this device.It can
effectively help to monitor and detect the body temperature of
entry and exit people ,thus contributing to prevent epidemic
situation. It can be widely used at all kinds of entrances and
exits of school, buildings, stations, etc
Installation Position
1.Camera being set in front of the aisle to capture the face;
2. Suggested installation height is about 2 meters, and camera
overlook view angle 0~15°;
3.For accurate detection of body temperature,1 meters(Range 1m to
2.5m)distance are tested for the optimum capture distance.
Installation Environment Standard
1.Illumination Requirements: No backlight, no obviously reflect
light on face, uniform light and no shadow. In addition, to ensure
the enough illumination of the scene when capturing the face, it is
suggested to increase the lighting devices if the face in the
display is not bright enough which may effect the face
capture(General 250~800Lux).
2.Light and Wind Requirements: This Device is suggested to be
installed indoor, ensuring there is no wind between device and
people, no direct sunlight, so as to avoid the detected temperature
too low or too high caused by blowing ,cooling and direct sunlight.
| Interface No. | Interface Name | Functional Indicators |
| 1 | Power Interface | 12VDC |
| 2 | Network Interface | RJ45 Network Interface |
| 3 | Relay Interface | +:NO Normally Open Port -:COM Public Port |
| 4 | Audio Interface | 1: Audio Input 2: Audio Ground 3: Audio Output 4: Empty |
| Interface No. | Interface Name | Functional Indicators |
| 1 | Power Interface | 12VDC |
| 2 | Network Interface | RJ45 Network Interface |
| 3 | Relay Interface | +:NO Normally Open Port -:COM Public Port |
| 4 | Audio Interface | 1: Audio Input 2: Audio Ground 3: Audio Output 4: Empty |
